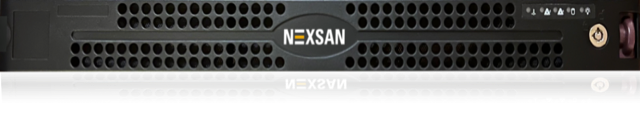

Nexsan EZ-NAS
Network-Attached Storage Made Easy
Get a Quote!
Click here to jump to more pricing!
Overview:
EZ-NAS is built on proven Nexsan enterprise technology. The EZNAS is ideal for small and medium sized businesses (SMBs) and edge use cases in large enterprises, providing simplified access to your data. The EZ-NAS is also ideal for building an efficient networked file environment.
The EZ-NAS platform is delivered in an easy-to-configure 1U form factor, 4 drive array with up to 1.5GB/s of throughput and up to 72TB of raw capacity.
EZ-NAS Features are Built for SMBs and Beyond
The EZ-NAS platform delivers advanced enterprise features such as in-line compression, Active Directory support and data encryption. EZ-NAS also comes with Retrospect client built-in for optional add-on services including Cloud Connector, Anomaly Detection and Data Backup
Simplified NAS Platform for Your Business Needs
The EZ-NAS has been specifically designed for simplified deployment and management.
The capabilities of the EZ-NAS enable it to be utilized for many data center applications such as edge repositories, digital video and media workflows and video surveillance deployments. The EZ-NAS can also protect your critical and high-value data from the unexpected because it is a reliable and high-performance target for many file backup applications.

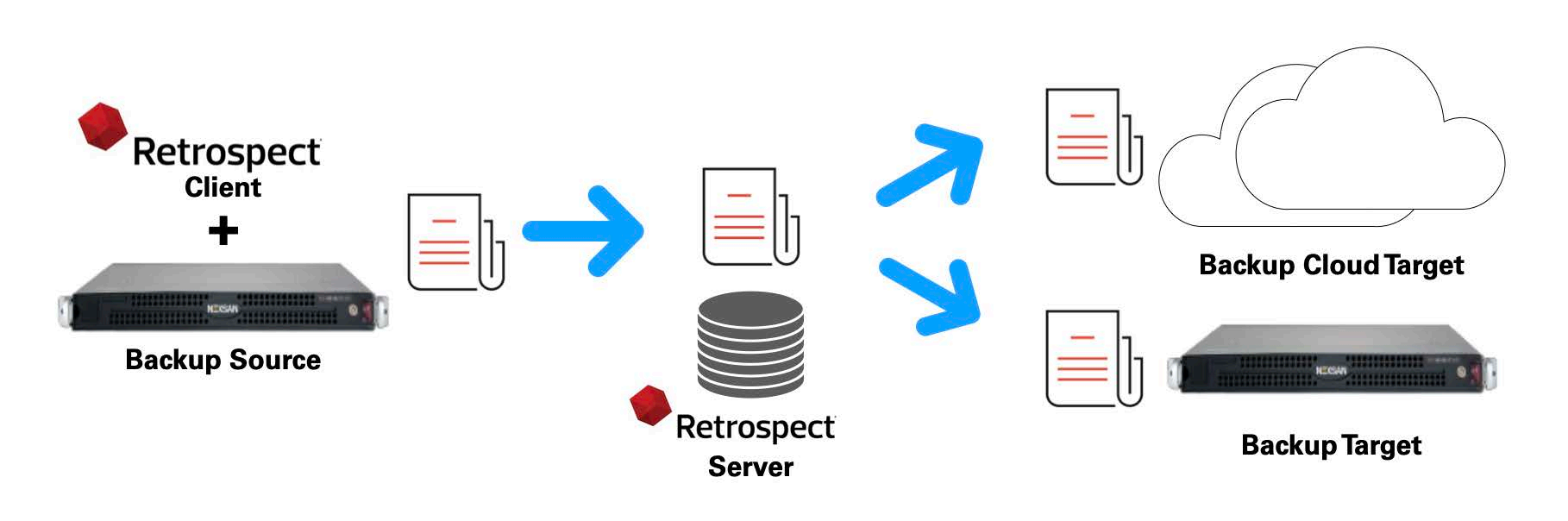

With the optional Retrospect software license, the EZ-NAS uses the built-in Retrospect client for implementing secure backups, data sharing, and disaster recovery solutions.
Features:
Small to Medium Business
Easy-to-configure 1U form factor is ideal for SMB & edge use cases
Data Services
Supports Compression, Encryption and Time Machine
Multi-Protocol
Supports NFS v3/v4, SMB v2/v3
Security
Local and Active Directory Support, AES-256 Encryption
High Performance
Class leading throughput for optimized performance
Integrated Backup
Optional Retrospect license provides secure backups, data sharing, and disaster recovery solutions.
Specifications:
| Category | Feature | EZ-NAS |
|---|---|---|
| Enterprise Features | ||
| Data Services | Compression, Encryption and Time Machine | |
| Security, Compliance and Ransomware Protection | EZ-NAS comes with Retrospect Client installed that enables seamless data backup to and recovery from on-prem/cloud targets (add-on Retrospect Server license required) | |
| Supports Multiple Protocols | NFS v3/v4, SMB v2/v3 | |
| User Interface | EZ-NAS uses a HTML5-based UI. The EZ-NAS UI allows an administrator to easily and securely manage/monitor a EZ-NAS deployment, regardless of size, from anywhere with just a web browser. | |
| PCI Compliance | EZ-NAS supports AES-256 Data-at-Rest-Encryption | |
| Authentication | Active Directory and Local | |
| Host Platforms | Windows, MacOS and Linux | |
| Performance | Up to 1.5GB/s (12Gb/s) | |
| System Configuration | ||
| Controllers | 1 | |
| Form Factor | 1U | |
| CPU Type | Intel Xeon E2314 quad core 2.8GHz | |
| System Memory (RAM) | 32 GB | |
| Storage Arrays | ||
| Maximum Number of Chassis (with Front Bay) | 1 | |
| Maximum System Raw Capacity Not Compressed with HDD | 72 TB | |
| Maximum System RAW Capacity Not Compressed with SSD | 30.72 TB | |
| RAID Level | RAID 5 | |
| Storage Media | ||
| 3.5" Enterprise Class 7.2K RPM SATA HDDs | 10 | 14 | 18 TB | |
| 2.5” SATA 1DWPD SSDs | 1.92 | 3.84 | 7.68 TB | |
| Host Connectivity | ||
| 1GbE Max Number of Ports/System | 2 | |
| 10GbE Max Number of Ports/System (Optional) | 2 | |
| 10GbE Embedded Standard Confguration | Yes | |
| System Storage Services | ||
| Max NFS File Systems | 50 | |
| Max CIFS File Systems | 50 | |
| Replication | N/A | |
| Power, Cooling, & Environmental | ||
| Voltage, Frequency | 100-240V | 50-60Hz | |
| Operating Temperature | 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Humidity | 8% to 90% (non-condensing) | |
| Maximum Power/Controller Node | 350W | |
| Size & Weight | ||
| Dimension (WxHxD) | 8.5" (H) x 24" (W) x 29.5" (D) | |
| Controller Unit Weight | Net Weight: 17.6 lbs (8 kg) Gross Weight: 30.4 lbs (13.8 kg) |
|
| Rails & Cables | ||
| Mounting Rails and SAS Cables included | Yes | |
| Power Cable | ||
| Power CablePWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | Yes |
Documentation:
Download the Nexsan EZ-NAS Datasheet (PDF)
